GPS Compass Module With Upgraded 10th Gen Chip For FPV Fixed Wing Drones Multi GNSS Navigation With GPS GLONASS BeiDou Galileo Support 32 Satellites Tracking Precise Flight And Reliable Positioning
✔️ Compact single-unit module for drones and robotics integration

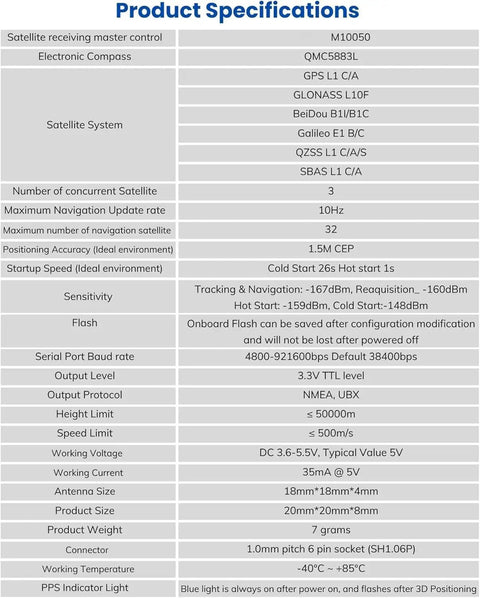

This compact, high-sensitivity GPS compass module uses the M10050 receiver and integrated QMC5883L magnetic sensor to deliver precise heading and multi-GNSS navigation (GPS, GLONASS, BeiDou, Galileo). It tracks up to 32 satellites simultaneously, ideal for FPV fixed-wing drones, quadcopters, and robotics in tight spaces.

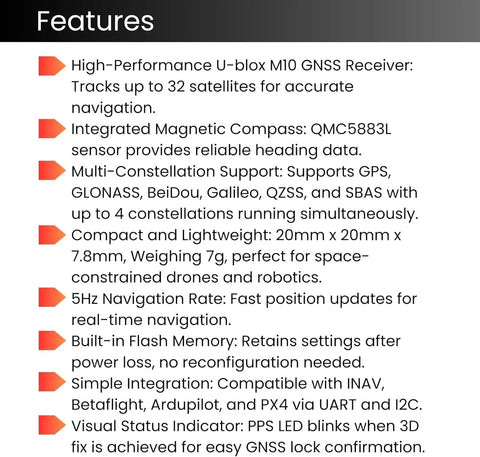

✅ High-performance GNSS with M10050 supporting GPS, GLONASS, BeiDou, Galileo
✅ Built-in QMC5883L magnetic sensor provides heading data

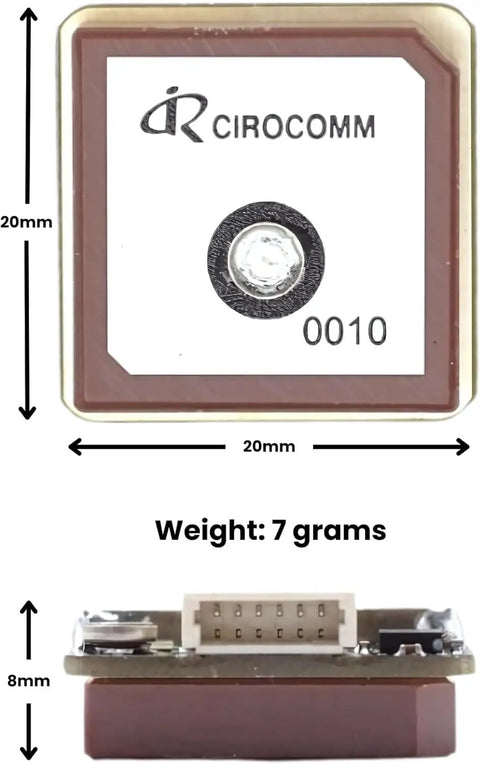

✅ Small 20x20x7.8 mm, 7 g lightweight design for space-limited setups
✅ Up to 5 Hz navigation update rate for real-time position data

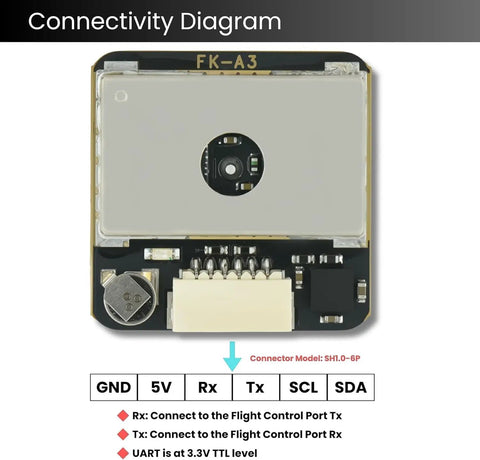

✅ UART and I2C interfaces for easy integration with INAV Betaflight ArduPilot PX4
💡 What is a GPS compass module used for in FPV drones and robotics?
A handy tool for stable navigation and precise heading in tight spaces.
- Reliable positioning with GPS, GLONASS, BeiDou, Galileo across environments
- Integrated magnetometer provides heading data for improved orientation
- Interfaces with common flight controllers via UART and I2C for easy setup
